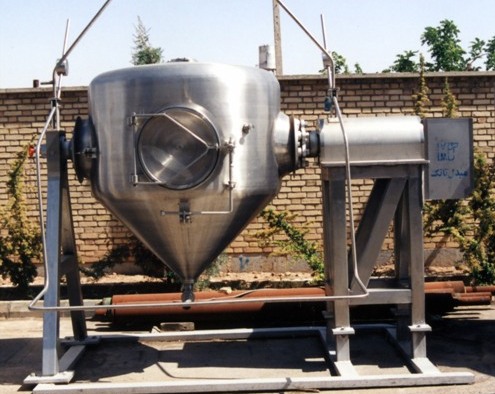

“Top” Butter Churn Type UOH
Field of application: The dairy industry
Capacity: 1000 – 3200 Liters
Standard Design: The butter churn is designed for making butter from pasteurized cream.
The drum is fabricated from stainless steel (AISI 316), inside sandblasted and outside polished completely.
The drum is driven by a toothed gear motor, regulating the speed by means of a frequency converter. The toothed gear motor is equipped with break either.
The operator can easily control speed regulation from control panel.
The churn is equipped with stainless steel buttermilk valve, air escape valve, sight glass, door for unloading the butter, guard rail and an operating panel (Stainless steel).
The operating panel is including potentiometer for speed regulation, start/stop push buttons and reversing device.
All parts of butter churn are mounted on a stainless steel frame.
Optional extras:
Butter trolley
Buttermilk trolley
Sprinkler system for temperature control
Cleaning turbine
Buttermilk pump

Frequency converter output
kw
Motor size
1500rpm
kw
E
mm
D
mm
C
mm
B
mm
A
mm
Total drum capacity liters UOH
No.
Max. 7.5 7.5 1048 1200 3060 2630 1548 1000 10
Max. 7.5 7.5 1118 1400 3260 2770 1618 1600 16
Max. 15.0 15.0 1220 1600 3560 3015 1755 2500 25
Max. 15.0 15.0 1315 1800 3760 3205 1850 3200 32
